The Siemens SITRANS FM MAG 5100 W is a mains-powered electromagnetic flow sensor engineered specifically for potable water, raw water and wastewater applications. Paired with a MAG 5000/6000 or MAG 6000 I transmitter, it is available in both AC and DC supply versions and delivers accurate, maintenance-free volume measurement across a very wide size range with full drinking-water approvals.

Features & Specifications

• Electromagnetic induction measuring principle with pulsed-field, mains-synchronised excitation (50 Hz / 60 Hz)

• Nominal size DN15–DN300 (½”–12”) coned sensor and DN25–DN2000 (1”–78”) full-bore versions

• Process connections to EN 1092-1 (PN10, PN16, PN40), ANSI B16.5 Class 150, AWWA C-207, AS4087 and JIS B2220

• Carbon-steel housing and flanges with corrosion-resistant two-component epoxy coating (min. 150 µm), category C4 to ISO 12944-2

• AISI 304 (1.4301) measuring pipe, Hastelloy measuring and grounding electrodes, EPDM / NBR / Ebonite liner options

• Enclosure IP67 to EN 60529 / NEMA 4X/6 as standard, IP68 / NEMA 6P (10 mH2O continuous) as an option

• Ambient temperature −40 to +70 °C (sensor); process-fluid temperature −10 to +70 °C; test pressure 1.5 × PN

• Drinking-water approvals including ANSI/NSF 61, WRAS (BS6920), ACS and DVGW W270; custody-transfer OIML R49 and MI-001

• Optional MCERTS, PED, FM Fire Service Meter (Class 1044) and VdS extinguishing-system approvals

Dimensions & Technical Data

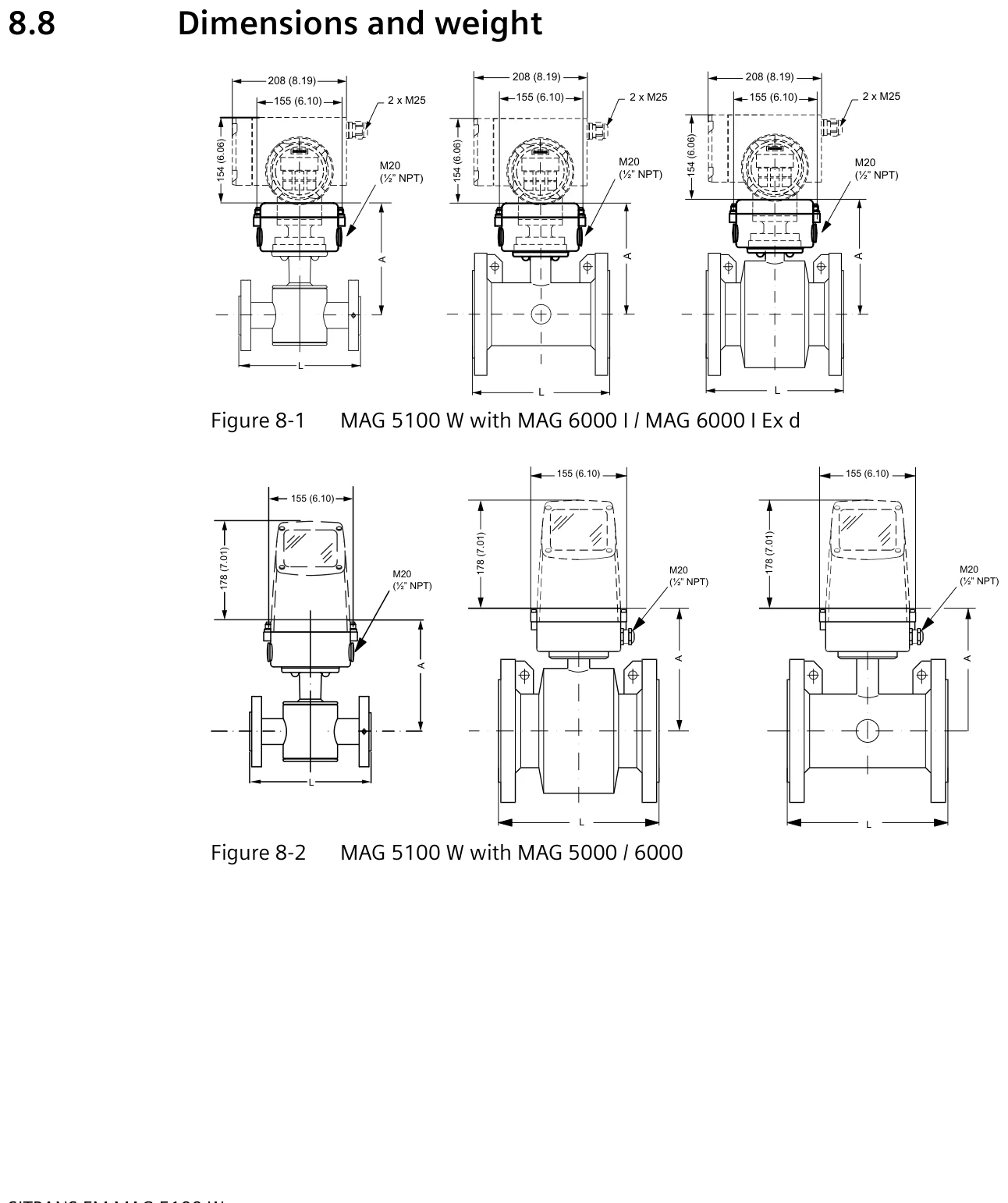

Overall dimensional drawings (with MAG 6000 I and MAG 5000/6000 transmitters) and the nominal-size A table for the full DN15–DN2000 range:

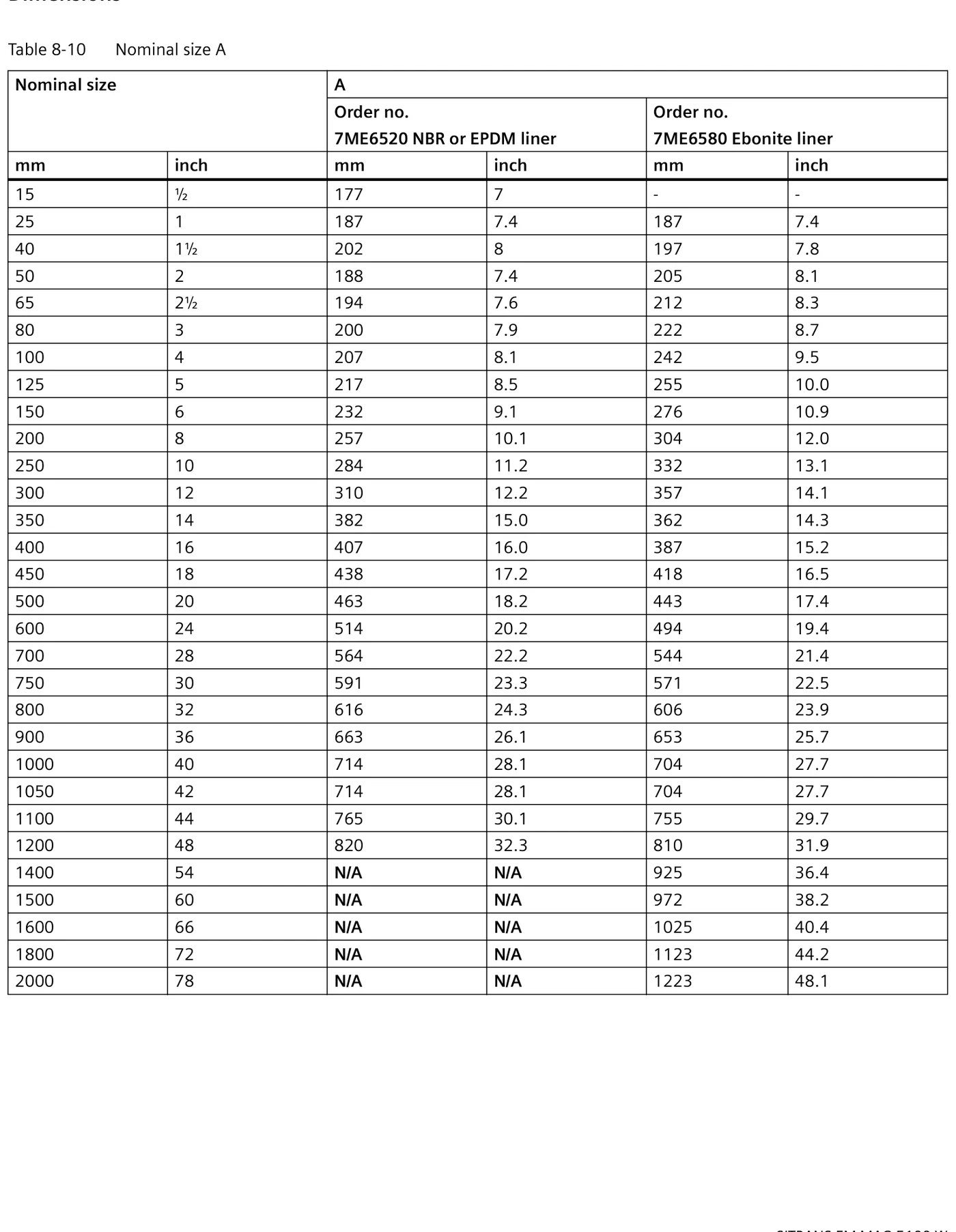

Nominal size A — sensor height above centreline (mm), 7ME6520 NBR/EPDM liner:

(Ebonite-liner 7ME6580 versions extend to DN2000; face-to-face length L varies with pressure rating and flange standard.)
