The Sensus WP-Dynamic (WPD) is a Woltmann/turbine water meter built for the measurement of high, relatively constant flow rates of cold water up to 50 °C — typically behind pumps and on trunk and bulk-supply mains. A patented hydrodynamically balanced rotor and symmetrical calibration adjustment give a high overload capability and stable accuracy, while the hermetically sealed register can be read regardless of orientation.

Features & Specifications

• Turbine (Woltmann) meter for cold water up to 50 °C, PN16

• Size range DN40–DN400; metrological class B (EEC, 30 °C)

• Patented hydrodynamically balanced rotor and symmetrical calibration adjustment (≤ DN300)

• Hermetically sealed register, protection class IP68, rotatable through 360°

• High overload capability; pattern-approved removable measuring element

• Up to three pulsers (1 × OD, 2 × RD) may be fitted without breaking the approval seal; ¼” pressure-sensor port; two electronic register options

• Powder coating for maximum corrosion protection; not affected by external magnetic fields

• Installation horizontal, vertical or inclined — 3 × DN straight pipe upstream (5 × DN for DN400)

• PN40 high-pressure version available (separate leaflet)

• Materials: cast-iron body, plastic measuring element and rotor, brass and stainless steel; ISO 9001 manufacture

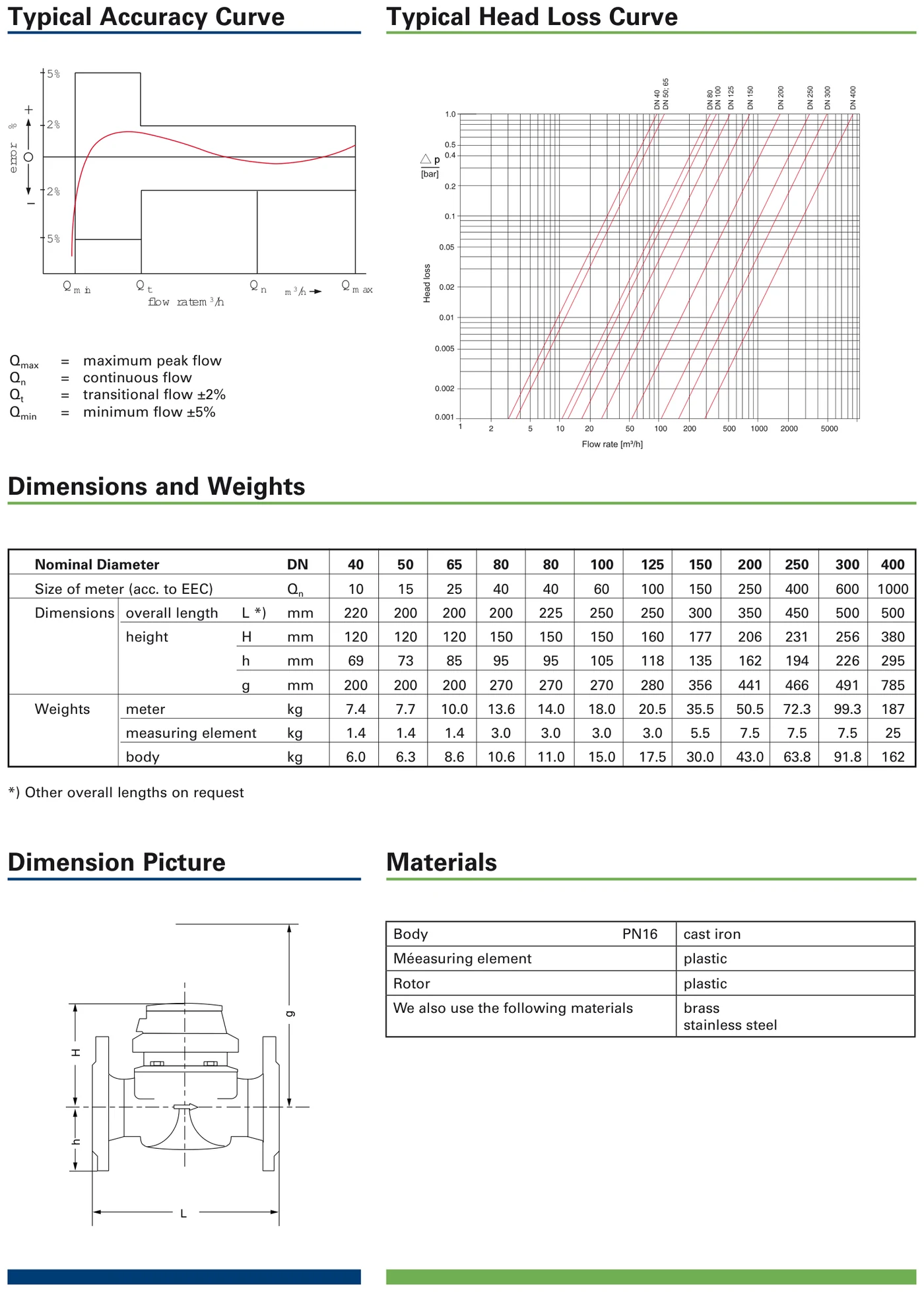

Dimensions & Technical Data

Dimensions and weights, selected sizes — Overall length L / Height H / h / g (mm) and meter weight (kg):
