The Sensus MeiTwin is a compound (combination) water meter for cold water up to 50 °C, designed for installations with an extremely wide, fluctuating flow profile. A Woltmann main meter and a piston-type by-pass meter are arranged in-line and linked by a spring-loaded changeover valve, so high flows are recorded by the main meter and very low flows (down to 6 l/h) by the by-pass — ideal for combined domestic/fire-service supplies and for leakage detection. The main meter, changeover valve and by-pass form a single removable “3-in-1” metrological unit.

Features & Specifications

• Compound meter for cold water up to 50 °C, PN16 (max. working pressure 16 bar)

• MID pattern approval (SK 11-MI001-SMU020)

• Size range DN50–DN100 (catalogue lists to DN150); wide ratio Q3/Q1 up to 6300

• Main (Woltmann) and by-pass (piston, type 612MTW) meters in series with spring-loaded, low-headloss changeover valve

• Removable “3-in-1” metrological unit (main meter + changeover valve + by-pass) for economical re-verification

• Integrated flow straightener — no upstream or downstream straight pipe required (U0D0)

• Minimum flow of the piston by-pass meter 6 l/h; by-pass register IP68

• Body and spool lengths to DIN 19625 and ISO 4064; ideal for fire-service pipes

• HRI-Mei / OD pulsers and ER56 encoder register options on both meters; optional ¼” pressure-sensor port

• Materials: cast-iron main-meter body, brass by-pass body, plastic measuring elements and rotors, plastic and stainless-steel changeover valve; ISO 9001 manufacture

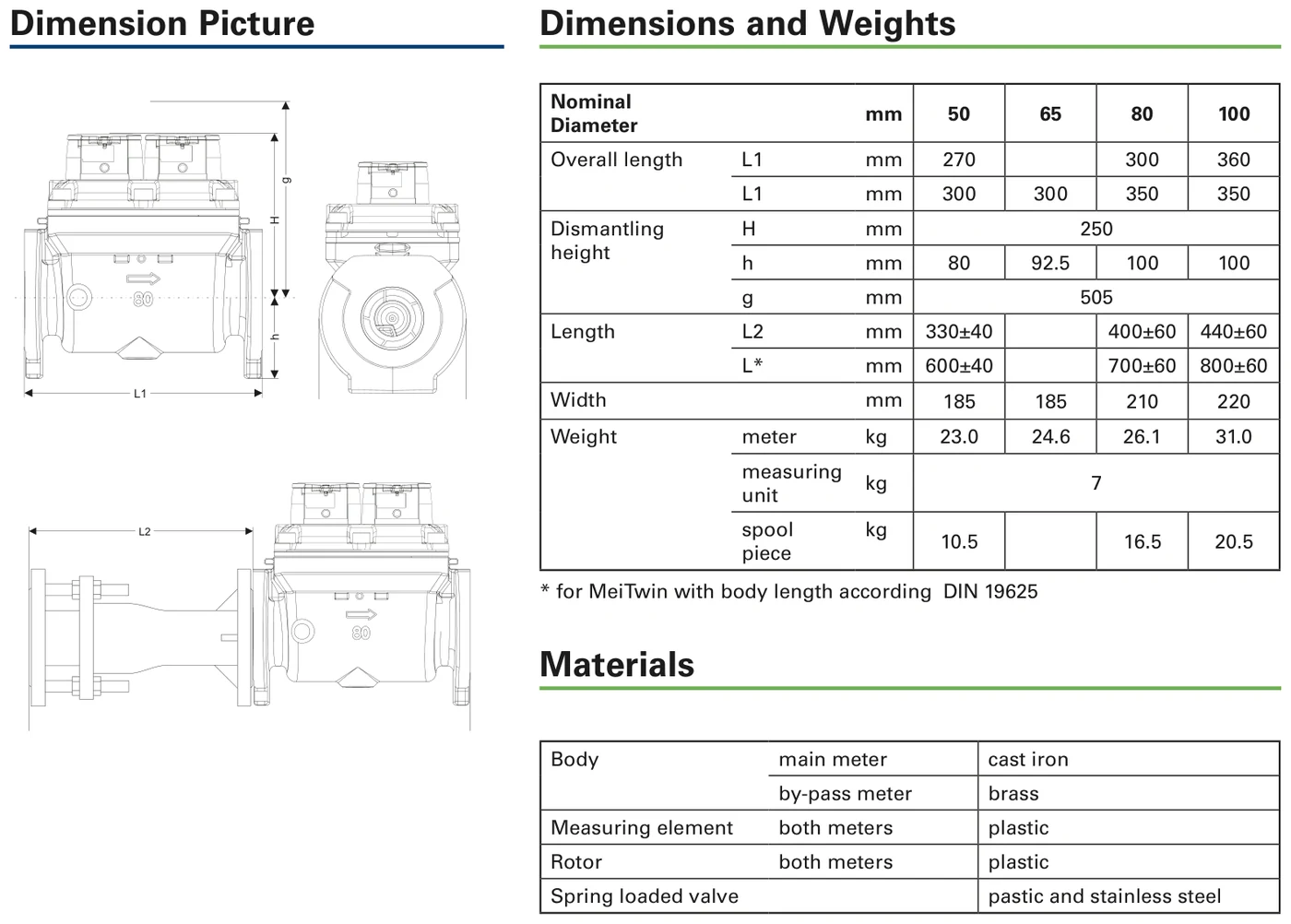

Dimensions & Technical Data

Performance (MID) and dimensions, by size:

Dismantling height H = 250 mm; g = 505 mm (all sizes). By-pass: piston meter cartridge type 612MTW-HRI, Q3 4.
