The Rhi-Node 600 is a mid-depth chamber in Smartlock’s Rhi-Node range of specialised access chambers for utilities network infrastructure. Its non-ferrous, theft-resistant construction protects valves, meters and other equipment at depths up to 600 mm while carrying a SANS 558 MD medium-duty load rating. It is designed to work with Smartlock lid and frame systems and the Smartlock access-management platform.

Features & Specifications

• Daylight (clear) opening: 350 mm

• Chamber depth: 600 mm

• Weight: 46 kg

• Load rating: SANS 558 MD (40 kN)

• Non-ferrous construction — theft-, scrap- and corrosion-resistant

• Configuration options: 300 mm extension panel, 180° split and 360° split

• Part of the Smartlock Rhi-Node range of specialised utility access chambers

• Integrates with the Smartlock GLAM (Gridlock Access Management) access-control and monitoring system

• Manufactured by an ISO 9001 certified producer

Dimensions & Technical Data

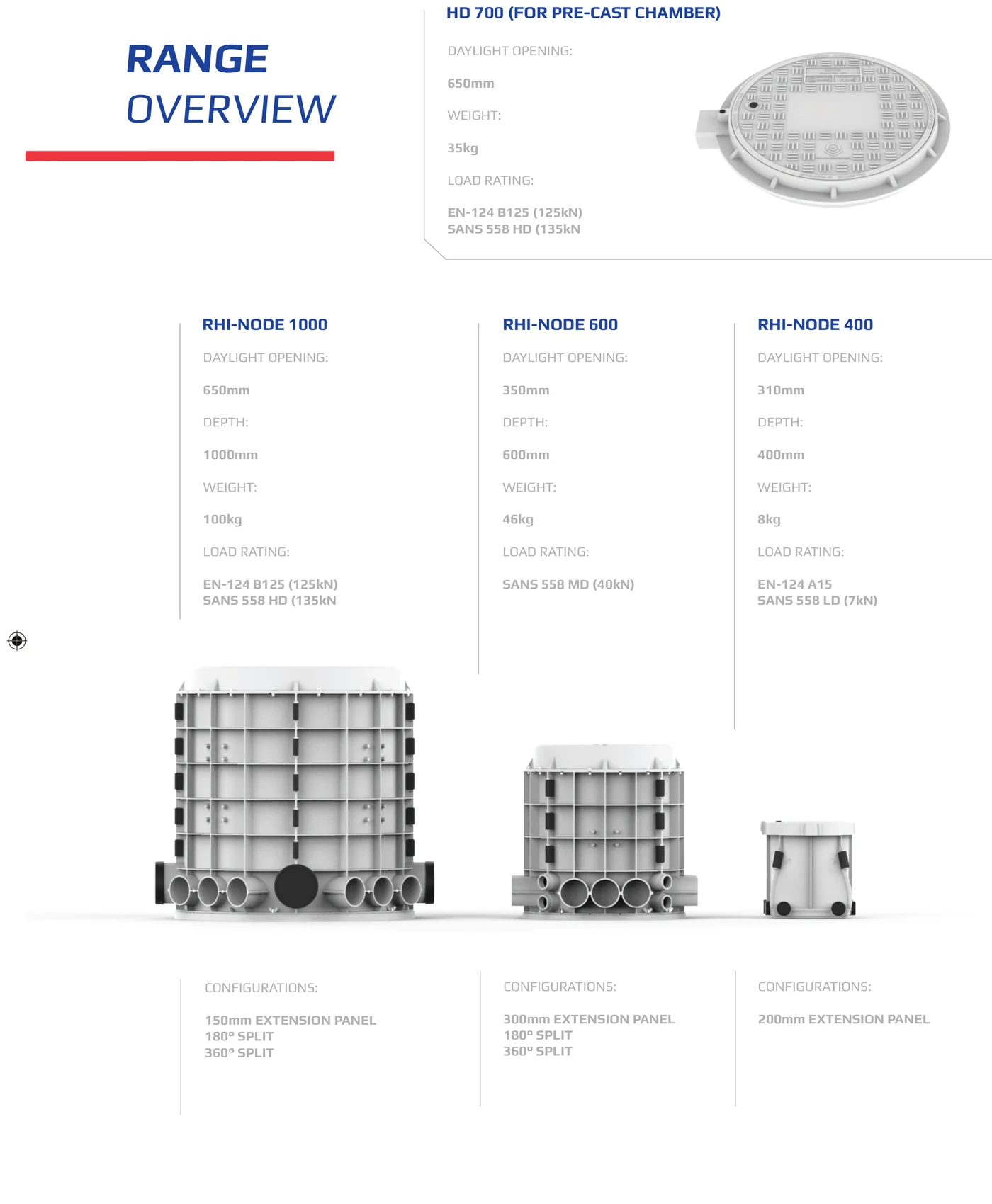

Range overview showing daylight opening, depth, weight, load rating and configuration options across the Rhi-Node chambers and HD 700 lid:
