The Woodlands Resilient Seal Gate Valve (Socketed) is the socket-ended sibling of the flanged RSV, an ISO-approved ductile-iron isolating valve for water reticulation and distribution networks. Its resilient EPDM-bonded wedge seals directly against a smooth, fusion-bonded epoxy (FBE) coated body bore for drop-tight shut-off with no bottom recess where grit and debris can collect, while the integrally-cast sockets connect directly to pipe for a compact, joint-saving installation.

Features & Construction

• ISO 9001 approved and manufactured to SANS 664

• Fusion-bonded epoxy (FBE) coating inside and out for corrosion protection

• Pressure rating PN16 (16 bar); body test 24 bar, seat test 18 bar

• Temperature range 0–52 °C

• Non-rising stem with resilient EPDM-bonded ductile-iron wedge for drop-tight sealing

• Socketed (spigot) ends cast integrally with the body; available with handwheel or cap top

• Also available in flanged ends

• Ductile-iron body, bonnet, cap, core and wedge (EN 1563 GJS500-7); stainless-steel stem (EN10088-1); bronze stem nut (EN1982)

• Nylon bushing, washer and shoes; EPDM O-rings, gaskets and dust cover (EN681-1); galvanised-steel studs

Dimensions & Materials

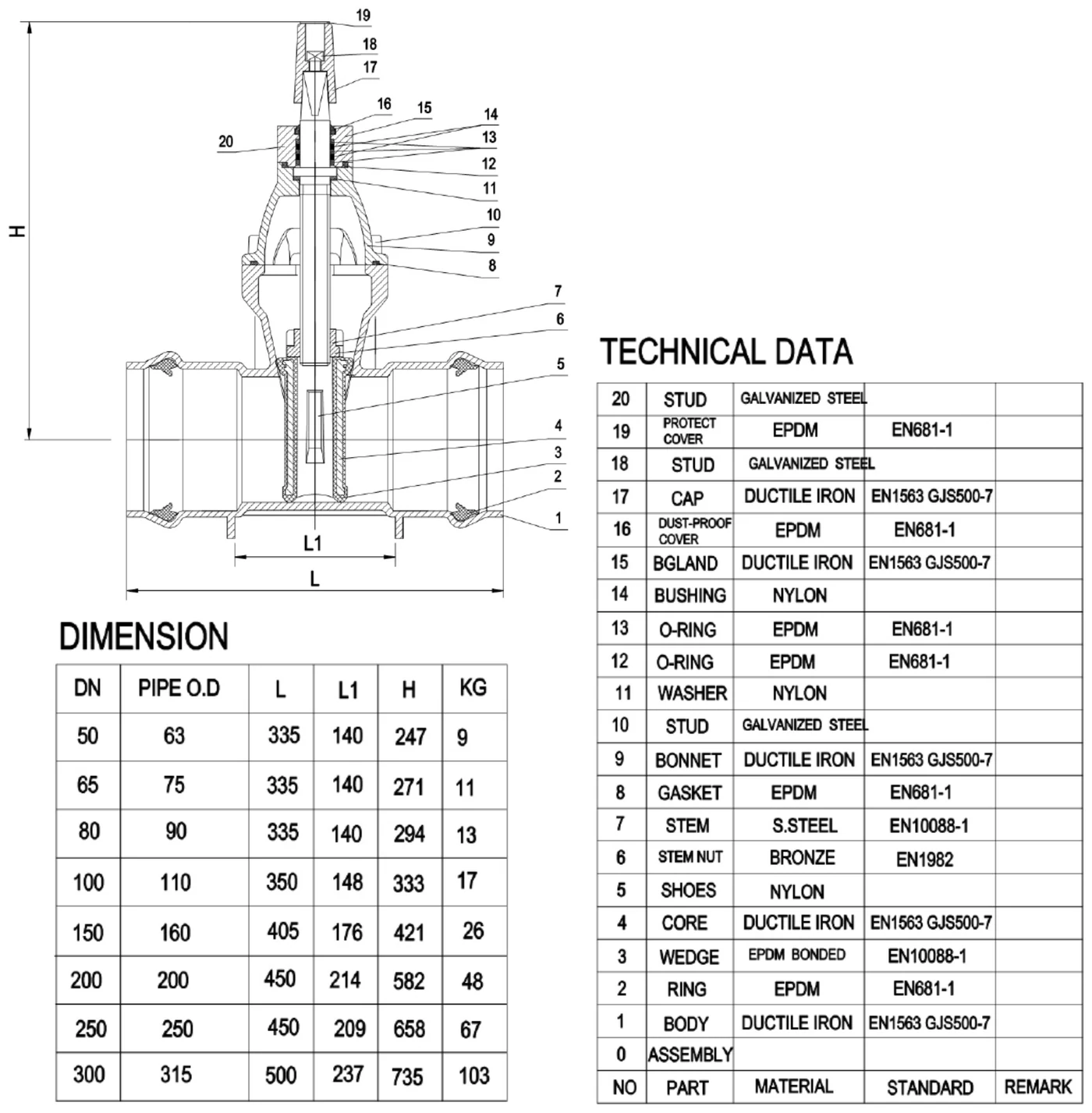

Cross-section drawing, dimension table (DN50–DN300) and full technical-data schedule:

Materials: Body / bonnet / cap / core / wedge — ductile iron (EN 1563 GJS500-7); wedge — EPDM-bonded; stem — stainless steel (EN10088-1); stem nut — bronze (EN1982); O-rings, gaskets, dust-proof and protect covers — EPDM (EN681-1); bushing / washer / shoes — nylon; studs — galvanised steel.
