The Avarro Logger (XiLog4G) is a robust, submersible battery-powered data logger for water-network monitoring that transfers data securely over 4G (LTE CAT1) with 3G/2G fall-back. It offers multiple channel options — dual internal pressure, dual digital (flow) inputs and an analogue input — so events can be qualified confidently and PRVs monitored with dual pressure. Simple wireless configuration via an Android app and an open API for sending data to PrimeWeb or a preferred hosting platform make it fast to deploy and easy to integrate.

Features & Specifications

• 4G (LTE CAT1) / 3G / 2G communications over secure HTTPS, with internal or external antenna options and user-accessible nano-SIM

• 4 GB memory logging average, minimum, maximum and standard-deviation values; periodic and event modes

• Sample intervals from 1 second to 24 hours (transmission down to every 5 minutes)

• Two digital inputs (max 1000 Hz) with digital totaliser and dual-stream combination; two internal pressure transducers 0–20 bar at ±0.1% of full range

• Analogue input options (0–20 mA and 0–2 mV/0–5 V/0–10 V) at ±0.1% of full range, 12-bit resolution

• IP68 fully submersible to 1 m depth; operating temperature 0 °C to 60 °C; up to 99% relative humidity

• 3.6 V lithium thionyl chloride battery with up to 5-year life (15-min logging, one transmission per day)

• Bluetooth local connection for simple wireless set-up via Android app; open XiLog API to PrimeWeb or third-party platforms

• Compact 100 × 160 × 44 mm housing (external aerial only), 530 g; low-power IoT variant available for extended battery life and sub-surface signal penetration

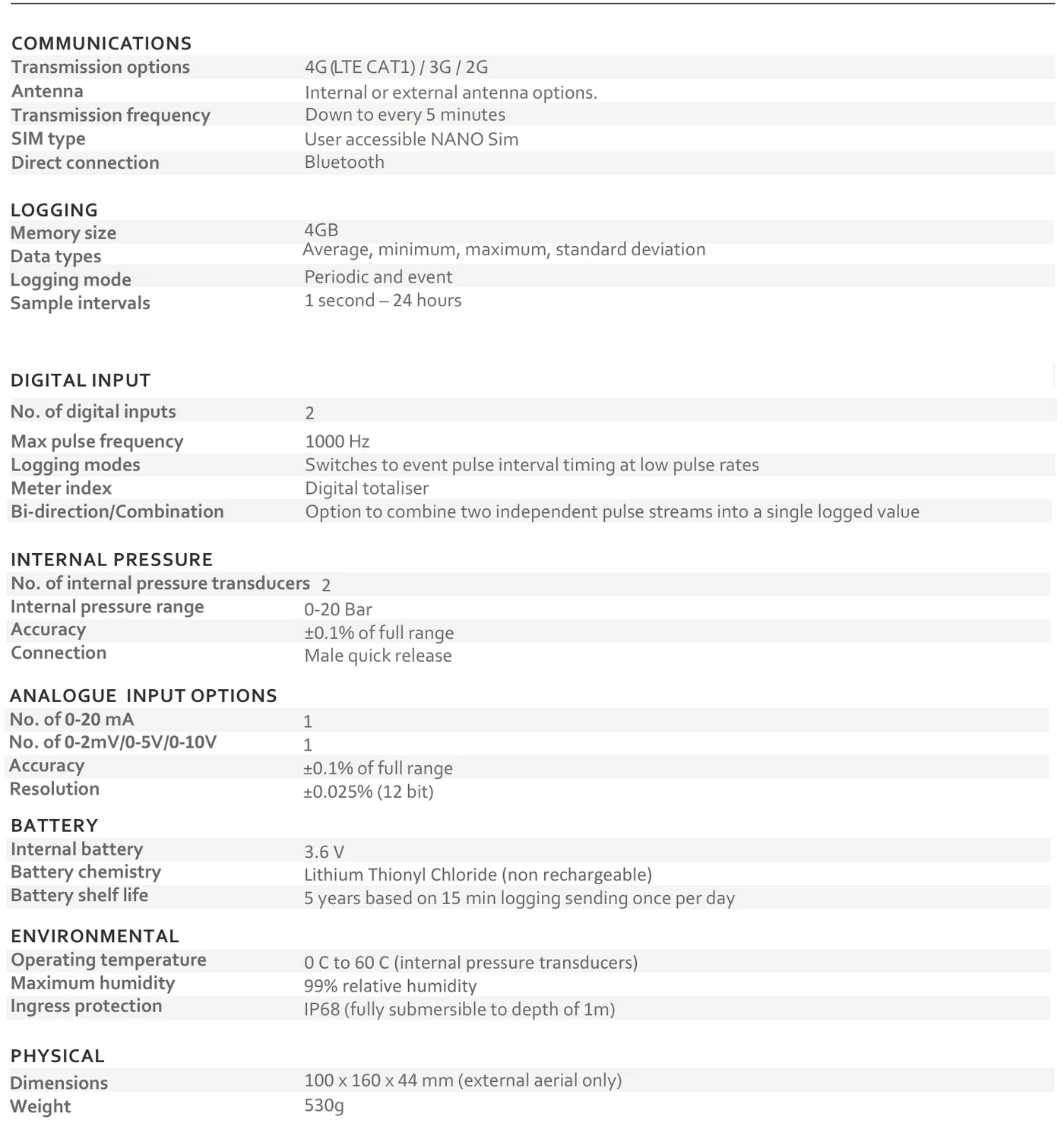

Dimensions & Technical Data

Full technical specification — communications, logging, inputs, pressure, battery, environmental and physical data:
